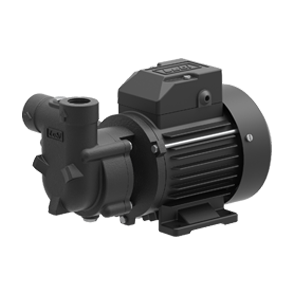

The Lubi LCF pumps are Self Priming Centrifugal Feed Pump for Reverse Osmosis (RO). Motor and pump are close coupled in a convenient and compact design for quick installation in limited space. The pumps have axial suction port and radial discharge port .

OPERATING CONDITIONS

Flow range : Up to 3.5 m³/h
Head range : Up to 35 metres
Ambient temperature : Max. +50°C
Liquid temperature range : 0°C to +90°C

MOTOR

• 2-pole induction motor, 50 Hz (n = 2900 RPM)
• Single phase 230V +5% -15% with thermal protection.
• Insulation class F.
• Protection IP 44.
• Constructed in accordance with IEC 34.

Reverse Osmosis (RO) systems
clean liquids without abrasives, which are non-aggressive the pump materials. (solids content up to 0.2%)
water supply.
heating, cooling, air-conditioning and circulation plants.
civil and industrial applications.
pressure boosting.
watering gardens.
