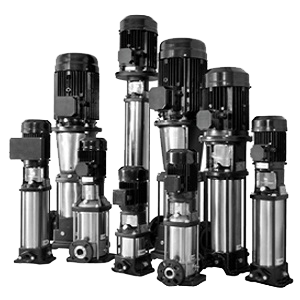

Vertical Multistage Pump

The LCR, LCRI, LCRN pumps are non-self-priming Pressure Booster Pump. The vertical in-line design enables the pump to be installed in a horizontal plane single system where the suction and discharge connections are in the same horizontal plane (in-line) and have the same pipe sizes. This design provides a more compact pump design saving space and easy pipe work. Pressure Booster Pump consists of a base and a pump head. The chamber stack and the outer sleeve are secured between the pump head and the base by means of tie bolts. All pumps are equipped with a maintenance-free mechanical shaft seal of the bellow type as standard. These pumps are available in various material versions according to the pumped liquid.

The LCR pumps are non-self-priming, vertical multistage centrifugal pumps. The pump consists of a base and a pump head. The chamber stack and the outer sleeve are secured between the pump head and the base by means of tie bolts. The base has suction and discharge connections on the same level (in-line).

All pumps are equipped with a maintenance-free mechanical shaft seal of the cartridge type as standard.
LCR, LCRI and LCRN pumps are fitted with a totally enclosed, fan-cooled, 2-pole motor with principal dimensions in accordance with the EN standards.
Electrical tolerances according to EN 60034.

Water supplyFiltration and transfer at waterworks
Distribution from waterwork
Pressure boosting in high-rise buildings, hotels, etc.
Pressure boosting for industrial water supply
Industry Pressure boosting in…

Process-water systems
Washing and cleaning systems
Vehicle washing tunnels
Fire-fighting systems

Liquid transfer in…

Cooling and air-conditioning systems (refrigerants)
Boiler feed and condensate systems
Machine tools (cooling lubricants)Aquafarming Transfer of…
Oils and alcohols
Acids and alkalis
Glycol and coolantsWater treatment
Ultra-filtration systems
Reverse osmosis systems
Softening, ionizing, demineralizing systems
Distillation systems
Separators
Swimming bathsIrrigation
Field irrigation (flooding)
Sprinkler irrigation
Drip-feed irrigation
