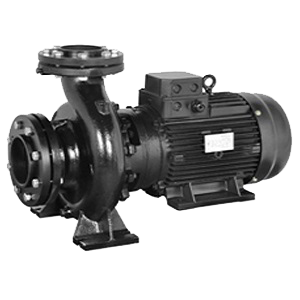

End Suction Pump
LES are single-stage End-suction pump according to ISO 2858. Our range also includes several models of pumps which have been developed with duty condition which are not covered in ISO 2858. The volute casing of End suction pump is designed to be robust in construction to take the undue stresses offered by the pipe work. They have an axial suction port and radial discharge port. Standard flanges are PN 16 as per DIN standard EN 1092-2 and PN 25 as per DIN standard EN 1092-2. ANSI 125 and ANSI 250 as per ASME B16.1 are available on request
These pumps have the discharge range from 3 to 660 m³/hr and head range from 4 to 158 meters.
Motor ratings are from 0.37 to 132 kW.
The pump impellers are dynamically balanced to grade 6.3 of ISO 1940.
These pumps are available with our standard range of motors complying with EFF2 motors. They can also be supplied with EFF1 motors on request.
The pumps are non self priming horizontal end suction pumps with axial suction port and radial discharge ports.
Standard flanges for suction and discharge ports will be PN 16 as per DIN standard EN 1092-2, PN 25 as per DIN standard EN 1092-2, ANSI 125 and ANSI 250 as per ASME B16.1 are available on request.
Performance and dimensions comply to ISO 2858.
These pumps are close coupled pumps with TEFC squirrel cage induction motors with main dimensions complying to IEC standards.
These pumps are available with mechanical shaft seal only.
Water Supply.
Pressure boosting for high rise buildings, hotels industry etc.
Industrial washing & cleaning systems.
Fire Protection systems.
Cooling & Air Conditioning systems.
Boiler feed and condensate transfer system.
Irrigation systems for fields including sprinkler & drip
irrigation systems.
