Centrifugal Pumps - MDH

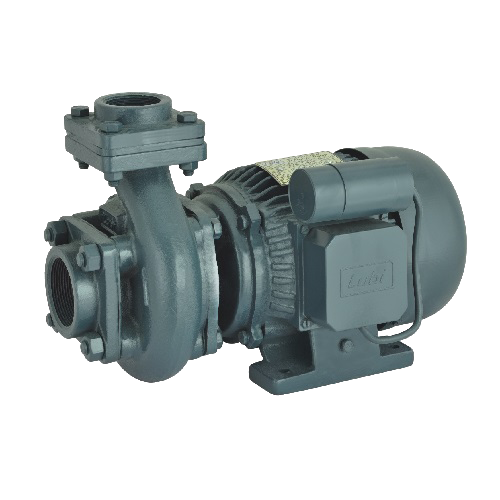

The Lubi MDH pumps are non-self priming, horizontal, centrifugal pumps.
Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
These pumps are available from 0.37 to 2.20 kW for single phase as well as three phase power supply.

The laminations are non-oriented silicon steel & confirms to IS-648.
Volute, Impeller, Adaptor, Stator body, Endshield is made of close grained cast iron of high tensile strength and has a very smooth surface finish resulting in low friction losses.
Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
The electric rotor is pressure die cast & uses electric grade aluminium.
Grease Lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.
Better insulating materials are used so that pumpset can with stand high temperature rise.
All components are manufactured from materials as per standard specification.
They are precisely machined on modern machine tools to give you years of reliable operation.

Residential Bungalows
Community Water Supply
Construction Site
Apartment
Small Farms
Lawns & Gardens
Car Washing
Sprinklers
Hotels & Hospitals
