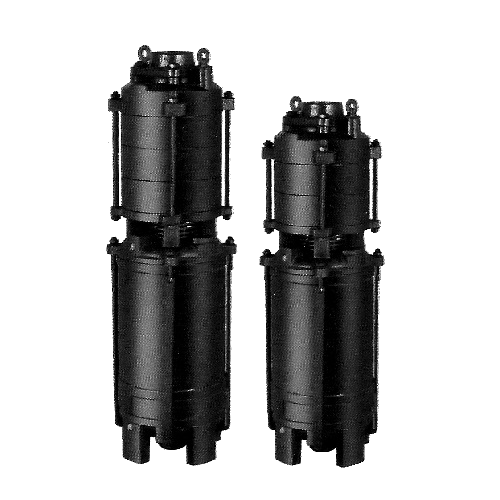

Openwell Submersible Pumps (Vertical)
Lubi LCV Series Vertical Multistage Openwell Submersible Pumpsets are manufactured strict quality assurance for years of efficient and reliable operation. Following are some of the special features. Irrigation from open wells especially where there is wide fluctuation in water levels
It has well designed sleeve and thrust bearing of adequate capacity for longer life.
High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
All components are precisely machined on modern precision machine tools to give you years of reliable operation.
Pumpset are designed to withstand voltage drops to 320 volts.
Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
All pumpsets are fully tested prior to despatch.
Motor Speed: 2880 RPM
Motor Horsepower: 0.5 to 20 HP
Frequency: 50 Hz
Material Mild: Steel
Flow Range: Up to 900 LPM
Head Range: Up to 141 m
Ambient Temperature: Maximum +50 degree C
Liquid Temperature: Range 0 to +50 degree C
Irrigation from open wells especially where there is wide fluctuation in water levels.
Community water supply from open wells.
Fountains.
Canals / Rivers belt irrigation.
Water supply for high-rise building.
