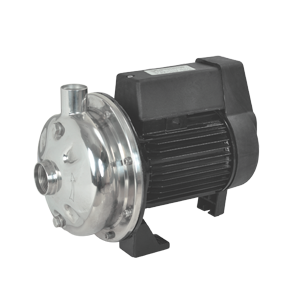

MXF Single stage centrifugal Pump

The Lubi MXF pumps are non-self priming, horizontal, single-stage, centrifugal pumps.
Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
These pumps are available from 0.37 to 1.50 kW for single phase as well as three phase power supply. The pumps have axial suction port and radial discharge port .
Pump casing and impellers are made of stainless steel AISI 304.
Motor shaft is made of carbon steel and pump shaft is made of stainless steel.
The pump is tted with a maintenance-free, mechanical shaft seal.

Flow range : Up to 10.5 m³/h
Head range : Up to 36 metres
Ambient temperature : Max. +50°C
Liquid temperature range : 0°C to +90°C
Total suction lift : Up to 7.5 metres

These pumps are suitable for liquids which are thin, clean, slightly aggressive, non-explosive, not containing solid particles or fibers.
• Domestic water supply systems
• Civil & industrial water supply systems
• Sprinkler systems
• Irrigation
• Gardens, farms.
