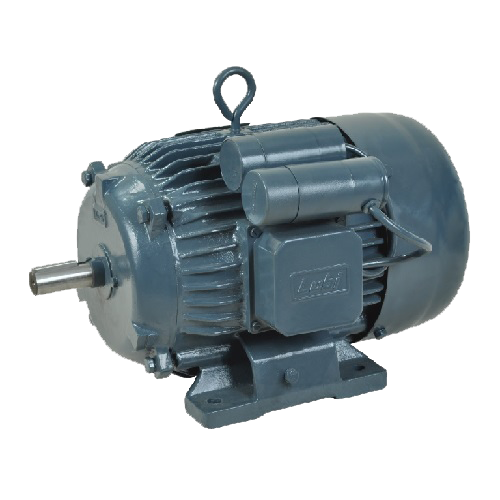

Motors (Single phase)
We are an acclaimed trader and supplier of high quality Single Phase Induction Motors. These motors are incorporated with a rotor with insulated lamination and high pressure die cast aluminum cage.
Our offered motors find application in various industries like automobile, construction, chemical, pharmaceutical, engineering and other sectors. Clients can avail the offered motors from us at market leading prices.
Short payback period / lower operating cost due to their higher efficiency.
Motors have lower power dissipation due to their higher efficiency.
Motors have a longer life span due to their relatively low temperature rise.
Motors have higher thermal margins, which helps avoid unnecessary safety margins in the design process.
Motors save energy and reduce CO2 emissions.
Motor type: CAPACITOR START INDUCTION RUN SINGLE PHASE A. C. MOTOR
Frame: 56B to 112 M
Rated power: 0.25 to 3.0 HP
Voltage ± variation :220 V ± 10%
Frequency ± variation: 50 Hz ± 5%
Rated speed: 1440 rpm (4 pole)
Ambient temperature: +50°C
Insulation: class B
Cooling method: Shaft mounted fan
Fans and blowers
Flour mills, rolling mills, mixers
Textile and plastic machineries
Printing, packaging and wood working machineries
Agricultural, food processing machinery
Material handling equipments
Cranes, hoists and lifts
